| Ask Lasest Price | |
| Brand Name : | SMATIPC |
| Model Number : | IEXP-522 |
| Certification : | CCC,CE,ROHS,ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T,Paypal |
| Supply Ability : | 10000 Pcs/Month |
| Delivery Time : | 3-7Days |

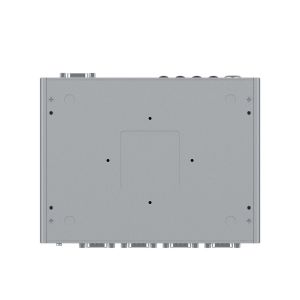

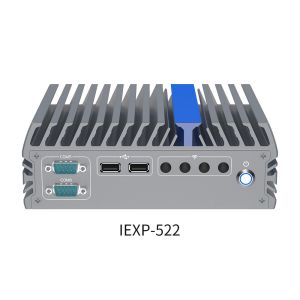

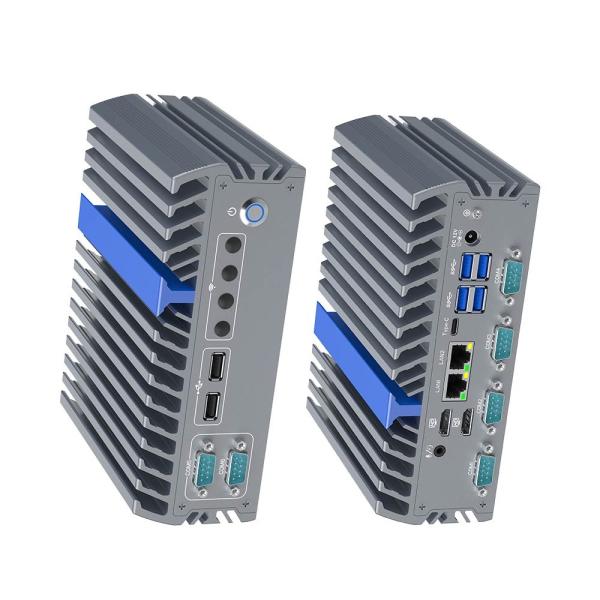

Fanless Industrial Computer 6 Usb Fanless Industrial Pc Mini Pc
In addition to its powerful processor, this industrial PC boasts of up to 32 GB DDR5 memory, providing ample space and speed for running multiple applications simultaneously. This feature makes the Core Industrial PC perfect for use in demanding industrial environments that require quick and efficient performance.
The Core Industrial PC also features up to 2TB SSD storage, providing plenty of space for storing large files, applications, and data. This feature is crucial in industrial settings where data storage and retrieval are critical to business operations.
| Parameter | Storage | ||||
| Processor | Onboard Intel i5-1235U(ten core twelve thread,4.4 GHz) Onboard Intel i7-1255U(ten core twelve thread,4.7 GHz) | M.2 | 1*M.2 2280 M-key slot(support NVME SSD, PCIE X4 protocol) | ||
| Chipset | Alder Lake-N | SATA | 1*2.5 inch SSD slot | ||
| Memory | 1*DDR5 4800MHz SODIMM slot, max 32 GB | Expansion slots | |||
| Graphics Card | Mini PCIE | 1* full length Mini PCIe slot(PCIE&USB2.0 protocol, 4G/WIFI/BT optional), inside Nano-SIM slot | |||
| Graphics Card | Integrated Intel(R) UHD Graphics (Support synchronous and asynchronous triple display) | M.2 | 1*M.2 2230 E-key slot( support WiFi / BT) | ||
| Display port | 2*HDMI(Resolution up to 3840 x 2160 @60Hz) 1*Type-C(Resolution up to 3840 x 2160 @60Hz) | Size/weight | |||
| Ethernet | Dimension | 186 * 140 * 66 mm | |||
| weight | X kg | ||||
| Internet port | 2*Intel I226-V 2.5G Ethernet | Installation | VESA , Wall-mounted, Din-rail (optional) | ||
| I/O | Environmental | ||||
| USB | 4*USB 3.0, 2*USB 2.0 | Operating Temperature | -20℃ ～ +60℃, Surface air flow | ||
| COM | 6*RS232 COM (standard) | Operating Humidity | 5% ～ 95% Non-condensing state | ||
| Audio | 1* Line-out/Mic-in, two in one audio | Other Function | Power on when there is electricity, network wake up timed startup, PXE startup(0～255level),TPM2.0 | ||
| Power supply | Application | Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc | |||
SMATIPC IEXP-522 is a rugged industrial PC that can be used in various industries. This embedded PC is designed to handle tough environmental conditions and can be used in both indoor and outdoor settings. The product is made in China and is certified with CCC, CE, ROHS, and ISO9001. The minimum order quantity is 1, and the price is negotiable. Each PC comes in one neutral box, and the delivery time is 3-7 days. Payment can be made through T/T or Paypal, and the supply ability is 10000 pcs/month.
|
|
