| Brand Name : | SMATIPC |
| Model Number : | IEXP-522 |
| Certification : | CCC,CE,ROHS,ISO9001 |
| Price : | Negotiable |
| Payment Terms : | T/T,Paypal |
| Supply Ability : | 10000 Pcs/Month |
| Delivery Time : | 3-7Days |

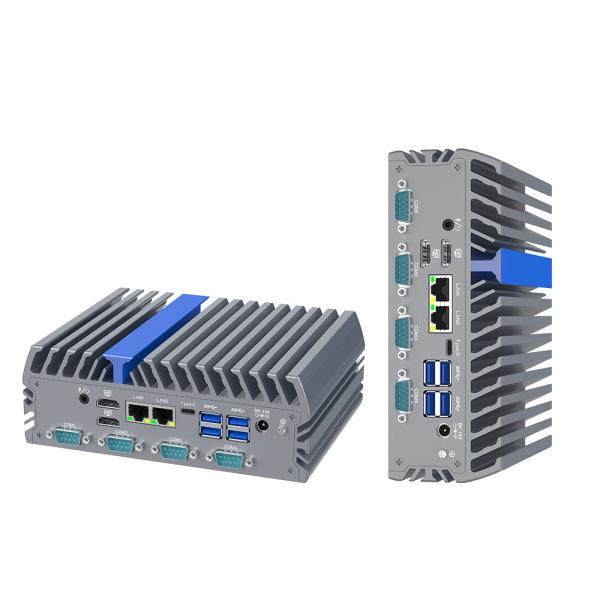

Din-Rail Mini Pc Box Computer With Ddr5 Ram M.2 Ssd Triple Display
One of the standout features of the Core Industrial PC is its powerful i7 CPU. With an Intel Core I7-1255U processor, this computer is capable of handling even the most demanding applications with ease. Whether you're running complex software or multitasking with multiple programs open at once, the i7 CPU ensures that you won't experience any lag or slowdown.
In addition to its powerful processing capabilities, the Core Industrial PC also comes with two Intel I226-V Ethernet network interfaces. This allows you to easily connect to your network and transfer data quickly and efficiently. Whether you're working with large files or streaming high-quality video, you'll be able to do so without any lag or buffering.
| Parameter | Storage | ||||
| Processor | Onboard Intel i5-1235U(ten core twelve thread,4.4 GHz) Onboard Intel i7-1255U(ten core twelve thread,4.7 GHz) | M.2 | 1*M.2 2280 M-key slot(support NVME SSD, PCIE X4 protocol) | ||
| Chipset | Alder Lake-N | SATA | 1*2.5 inch SSD slot | ||
| Memory | 1*DDR5 4800MHz SODIMM slot, max 32 GB | Expansion slots | |||
| Graphics Card | Mini PCIE | 1* full length Mini PCIe slot(PCIE&USB2.0 protocol, 4G/WIFI/BT optional), inside Nano-SIM slot | |||
| Graphics Card | Integrated Intel(R) UHD Graphics (Support synchronous and asynchronous triple display) | M.2 | 1*M.2 2230 E-key slot( support WiFi / BT) | ||
| Display port | 2*HDMI(Resolution up to 3840 x 2160 @60Hz) 1*Type-C(Resolution up to 3840 x 2160 @60Hz) | Size/weight | |||
| Ethernet | Dimension | 186 * 140 * 66 mm | |||
| weight | X kg | ||||
| Internet port | 2*Intel I226-V 2.5G Ethernet | Installation | VESA , Wall-mounted, Din-rail (optional) | ||
| I/O | Environmental | ||||
| USB | 4*USB 3.0, 2*USB 2.0 | Operating Temperature | -20℃ ～ +60℃, Surface air flow | ||
| COM | 6*RS232 COM (standard) | Operating Humidity | 5% ～ 95% Non-condensing state | ||
| Audio | 1* Line-out/Mic-in, two in one audio | Other Function | Power on when there is electricity, network wake up timed startup, PXE startup(0～255level),TPM2.0 | ||
| Power supply | Application | Industrial automation, medical, transportation, logistics, warehousing, e-education.,etc | |||
The SMATIPC IEXP-522 is ideal for scenarios that require a reliable, durable, and high-performance industrial PC. It is suitable for use in industrial environments where other standard PCs may not be suitable. It is an excellent choice for businesses that require an industrial PC that can withstand harsh environments. Whether you are looking for a PC for a transportation system, automation system, or machine vision, the SMATIPC IEXP-522 is an excellent choice.
|
|
